⚓ In-house Concept Designs

ORCA Class
Fishing Vessel Designs

Flexible designs tailored to customer demands — from fresh fish trawlers for coastal fisheries to large-scale freezing vessels engineered for North Atlantic operations.

3

Concept Sizes

34.8–54.9m

Length Range

15–29

Crew Capacity

RMRS · BV · RINA

IACS Member Classification
Concept 01

ORCA 35

Fresh Fish Trawler

A compact 34.8m hull optimized for coastal day-trip fishing operations. Fresh fish hold capacity is maximized through fish-box configuration, with accommodation for 15 crew including dedicated owner and captain rooms. RMRS / BV / RINA / IACS classified under Fishing Vessel A1 Ice 2 notation.

Main Dimensions
LOA34.8 m
LBP34.6 m
Beam11.5 m
Depth4.0 m
T14.0 m
NotationA1 Ice 2
Propulsion & Performance
Main Engine1000 kW MAK CPP
Shaft Generator500 kW PTH 200 kW
Speed12 knots (est.)
Trawls2 Trawls
Capacities
Accommodation15 people
Cabins6 Double + Capt. + Ch.Eng. + Owner
Freezing Hold296.7 cbm
Hold Capacity228 boxes × 490 kg = 111.72 ton
Tank Capacities
Fuel Oil155.4 cbm
Fresh Water35.3 cbm

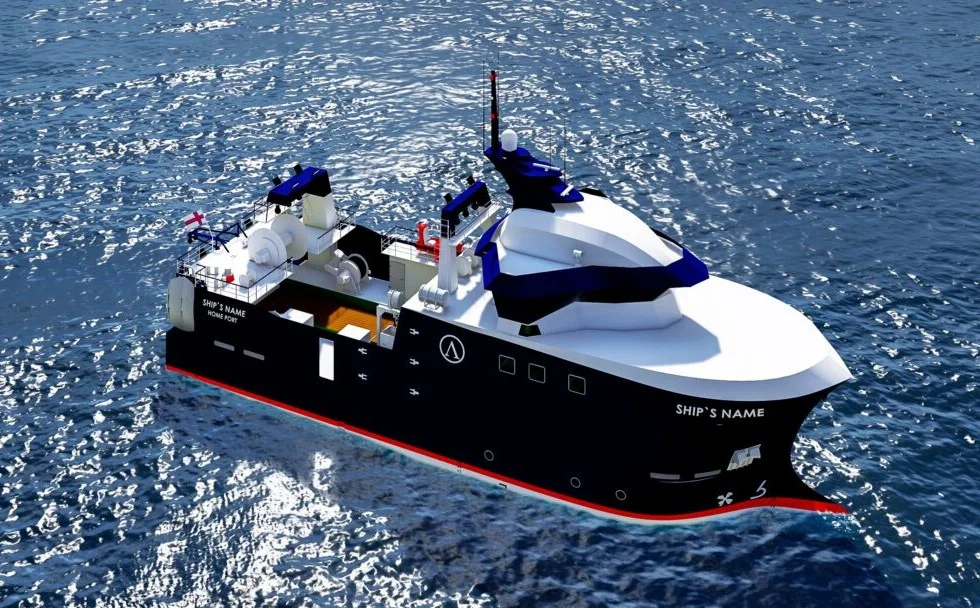

ORCA 35 — 35m Fresh Fish Trawler at sea, designed by Akkan Maritime

Technical drawings

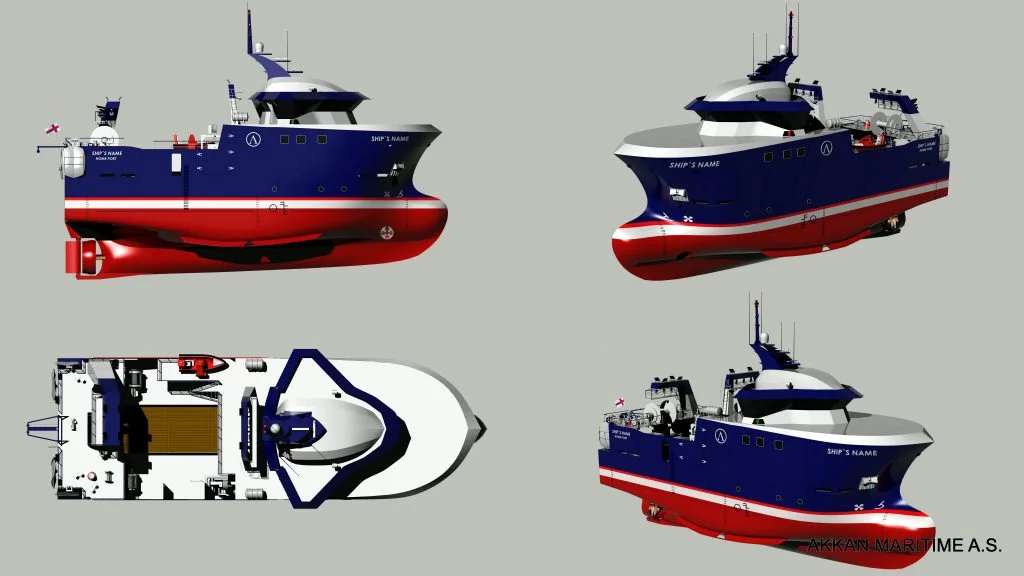

ORCA 35 — Four-view technical render

Profile, plan, fore and aft views — showing trawl deck arrangement, accommodation block, wheelhouse and freezing hold layout.

ORCA 35 four-view technical render — side, top, bow and stern views
Concept 02

ORCA 45

Redfish & Cod Fish Trawler

A 44.9m mid-range freezing trawler designed for medium-distance operations. Bow thruster, larger main engine and 620 cbm freezing hold at −30°C with Freon R22 / Ammonia cooling. Accommodation for 29 crew. Fishing Vessel A1 Ice 3 notation under RMRS / BV / RINA classification.

Main Dimensions
LOA44.9 m
LBP40.65 m
Beam12.0 m
Depth4.0 m
T15.7 m
NotationA1 Ice 3
Propulsion & Performance
Main Engine2000 kW MAK CPP
Shaft Gen.1000 kW PTH 400 kW
Bow Thruster400 kW
Speed12 knots (est.)
Cargo Cranemax 1T @ 10M
Capacities
Accommodation29 people
Cabins12 Double + 2 Single + Capt. + Ch.Eng.
Freezing Hold620 cbm @ −30°C
CoolingFreon R22 / Ammonia
Tank Capacities
Fuel Oil218 cbm
Fresh Water40 cbm

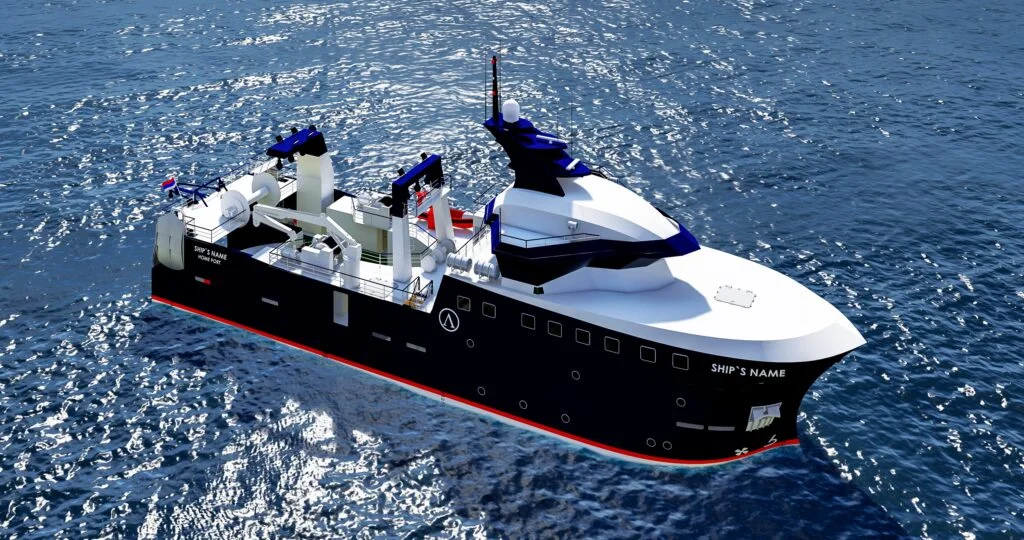

ORCA 45 — 45m Redfish & Cod Fish Trawler at sea

Technical drawings

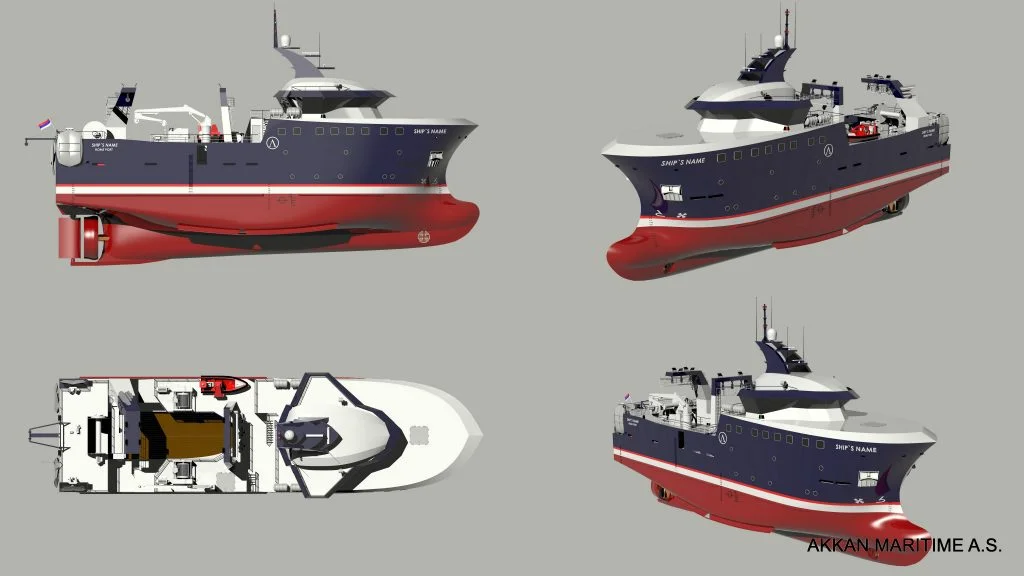

ORCA 45 — Four-view technical render

Larger trawl deck, processing area arrangement, factory layout and crew accommodation block detailed in profile, plan, fore and aft views.

ORCA 45 four-view technical render
Concept 03

ORCA 55

Shrimp Trawler · Large Freezing Vessel

The flagship 54.9m design — a large freezing trawler with 797 cbm cold storage, full processing factory onboard and the same robust 2000 kW MAK CPP propulsion. Engineered for shrimp and demersal species in North Atlantic conditions. A1 Ice 3 notation, RMRS / BV / RINA classified.

Main Dimensions
LOA54.9 m
LBP52.20 m
Beam12.5 m
Depth4.0 m
T16.95 m
NotationA1 Ice 3
Propulsion & Performance
Main Engine2000 kW MAK CPP
Shaft Gen.1000 kW PTH 400 kW
Bow Thruster400 kW
Speed12 knots (est.)
Cargo Cranemax 1T @ 10M
Capacities
Accommodation29 people
Cabins12 Double + 2 Single + Capt. + Ch.Eng.
Freezing Hold797 cbm @ −30°C
CoolingFreon R22 / Ammonia
Tank Capacities
Fuel Oil218 cbm
Fresh Water40 cbm

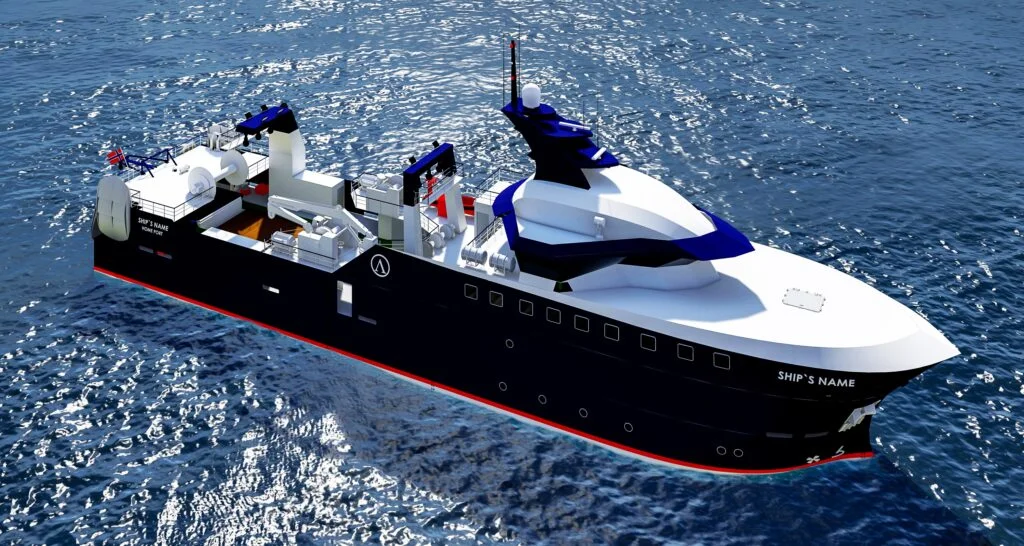

ORCA 55 — 55m Shrimp Trawler / Large Freezing Vessel

Technical drawings

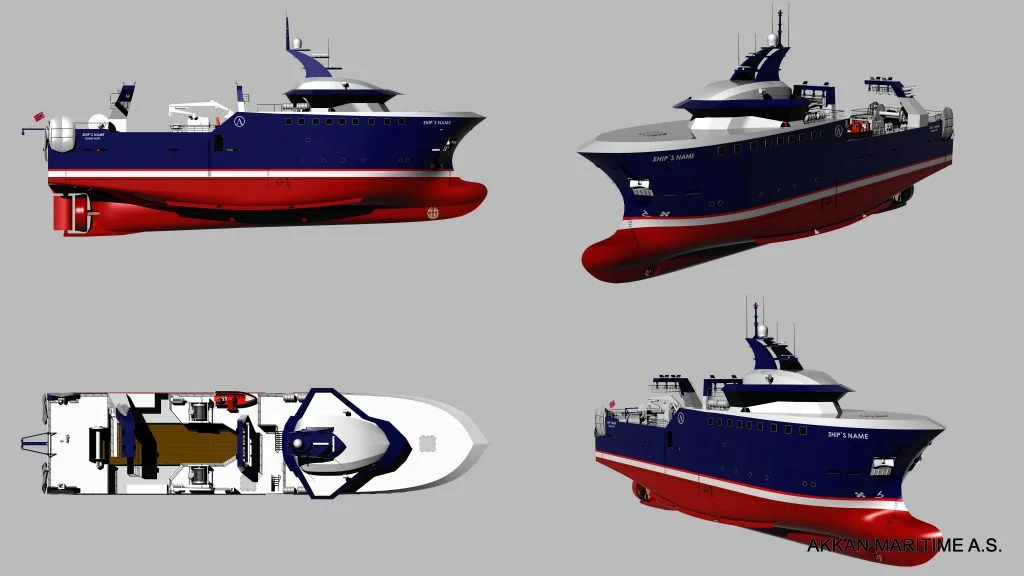

ORCA 55 — Four-view technical render

The largest concept — full processing factory, expanded freezing hold, large trawl winch arrangement and reinforced ice-class hull.

ORCA 55 four-view technical render

Customize your fishing fleet

Each ORCA design can be tailored — propulsion package, hold configuration, processing equipment, accommodation layout, ice class. Request the full design package and a tailored proposal.
